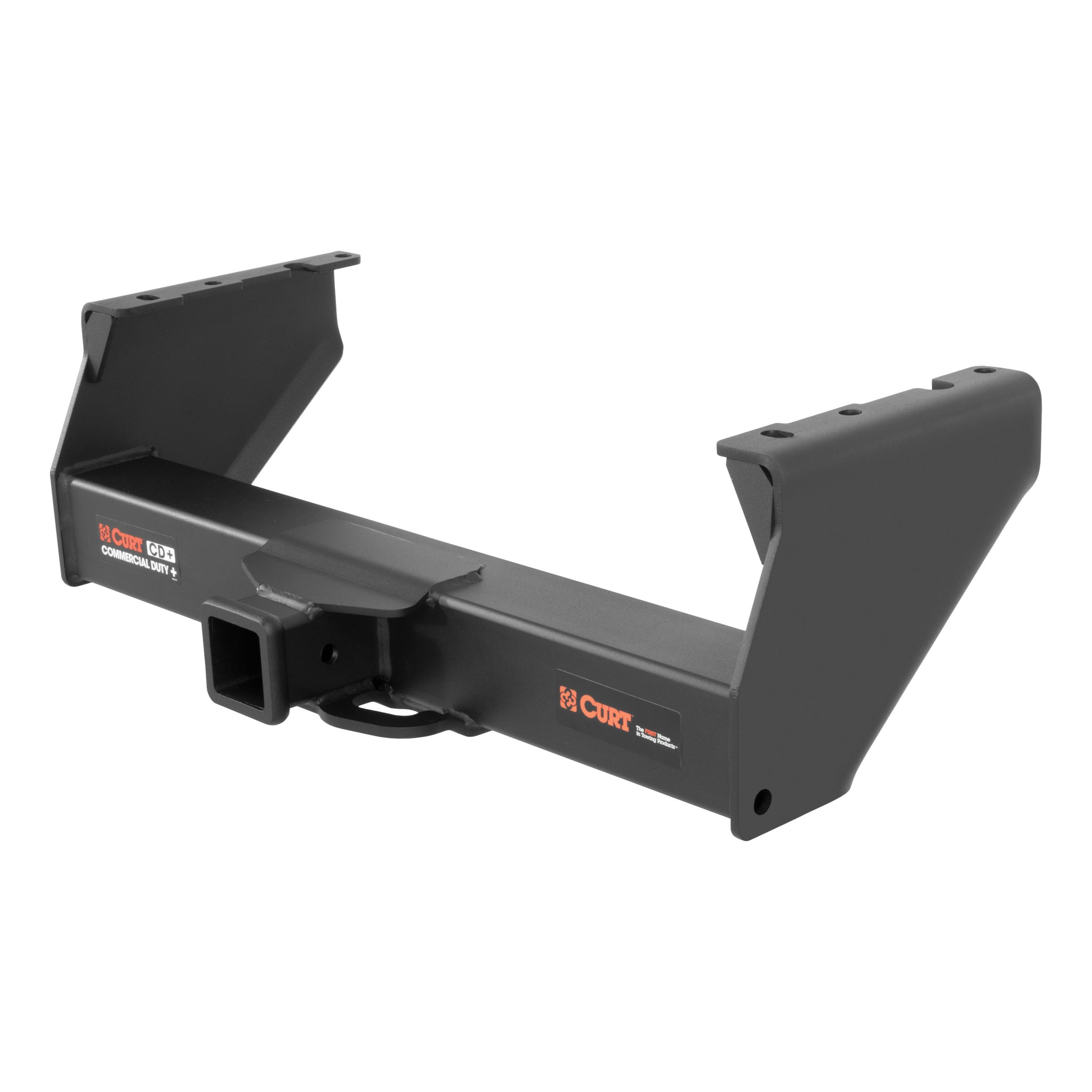

Commercial Duty Class 5 Hitch 2-1/2" Receiver Select Chevy GMC Dodge Ram

3 sold in last 17 hours
CURT
CUR-15800
In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the...

customers are viewing this product
Commercial Duty Class 5 Hitch 2-1/2" Receiver Select Chevy GMC Dodge Ram
In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 3500, 3500 HD or 3500 Classic, Dodge Ram 3500, 4500 or 5500, GMC Sierra 3500, 3500 HD or 3500 Classic and Ram 3500, 4500 or 5500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.
  • Co-cured in a rust-resistant liquid A-coat, inside and out

Attributes:

  • Brand Name: CURT
  • GTIN: 00612314158003
  • Box Height in Inches - XA: 18
  • Box Length in Inches - XA: 42
  • Box Width in Inches - XA: 12
  • Class ID: 10
  • Container Cases Qty - XA: 0
  • Container Pallet Qty - XA: 0
  • Container Unit Qty - XA: 0
  • Container Volume Cubic Feet - XA: 0.00000
  • Container Volume Cubic Meter - XA: 0.00000
  • Container Weight KG - XA: 0
  • Container Weight Lbs - XA: 0
  • Item Class - XA: MFH
  • Item Height - XA: 10.620
  • Item Length - XA: 33.630
  • Item Width - XA: 18.000
  • Main Body Shape: Square
  • Master Case Height Inches - XA: 0.000
  • Master Case ITF14: 0
  • Master Case ITF14 - XA: 0
  • Master Case Inner Pack Qty - XA: 0
  • Master Case Length Inches - XA: 0.000
  • Master Case Qty - XA: 0
  • Master Case Volume Cubic Feet - XA: 0.00000
  • Master Case Weight Lbs - XA: 0.000
  • Master Case Width Inches - XA: 0.000
  • Material - XA: Carbon Steel
  • Mount Type Description - XA: Blank
  • Pallet Case Per - XA: 0
  • Pallet Case Per Layer - XA: 0
  • Pallet Cases Per - XA: 0
  • Pallet Cases Per Layer - XA: 0
  • Pallet Layer of Cases - XA: 0
  • Pallet Qty - XA: 16.000
  • Pallet Total Height Inches - XA: 0.000
  • Pallet Total Weight Per - XA: 0.000
  • Parcel Allowed - XA: Yes
  • Price Code - XA: 88
  • Product Weight - XA: 66.400
  • Rate Class - XA: 92.5
  • Receiver Tube Size: 2-1/2 IN
  • Retail Height - XA: 13.000
  • Retail Length - XA: 43.000
  • Retail Width - XA: 21.000
  • Sales Family Code - XA: HITCH
  • Sales Family Description - XA: HITCH
  • Sales Group Description - XA: CL 5
  • Shipping Weight - XA: 72.400
  • Side Application Type Description - XA: Blank
  • Tariff 301 - XA: No
  • Tongue Weight (TW): 2,700 LB
  • Truckload Cases Qty - XA: 0
  • Truckload Pallets Qty - XA: 0
  • Truckload Units Qty - XA: 0
  • Truckload Volume Cubic Feet - XA: 0.00000
  • Truckload Weight - XA: 0
  • Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Weight Carrying Capacity (WC): 20,000 LB
  • Weight Distribution (WD): 20,000 LB
  • Weight Distribution Tongue Weight (WDTW): 2,700 LB

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 43.0000 x 21.0000 x 13.0000 inches
  • Weight: 72.4000 POUNDS
