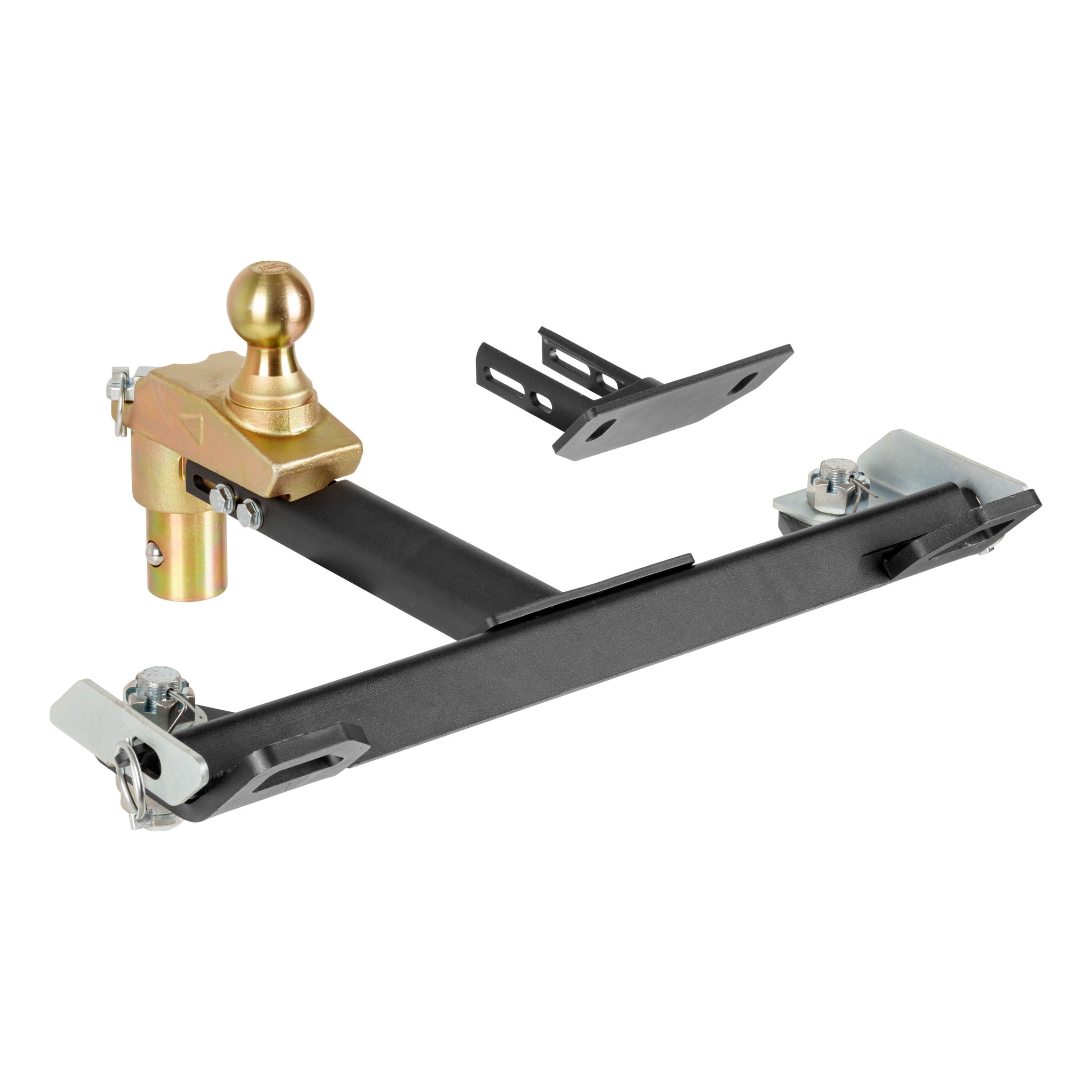

Multi-Fit OEM Puck System Gooseneck Ball With 4" Offset

Prepare your truck for reliable gooseneck towing while maintaining flexibility with the CURT multi-fit OEM puck system gooseneck ball with 4" offset. This patented trailer ball ensures a hassle-free drop-in installation and grants an extra 4" of rearward offset, significantly enhancing the clearance between your truck bed and trailer. This advantage is particularly valuable for short-cab pickup trucks. The multi-fit puck system is extensively tested and designed to handle demanding tasks, compatible with popular truck brands such as Chevrolet, Ford, GMC, Nissan, and Ram, as well as CURT OEM-style gooseneck hitches. Engineered to seamlessly accommodate hardworking pickup trucks, the CURT multi-fit OEM puck system gooseneck ball with 4” offset incorporates a patented quarter-turn installation mechanism. This allows for quick insertion of the ball into the gooseneck hitch when required, allowing full functionality of the truck bed when needed. When it's time to free up the bed for other towing or cargo purposes, simply lift the lever and twist a quarter-turn to unlock the retention balls. This enables effortless removal and convenient storage. With a towing capacity of up to 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, this kit is constructed from forged and machined steel alloy, providing reliable strength for handling even the largest gooseneck trailers. It's important to note that these weight ratings are limited by the lowest-rated component in the entire towing system, including the vehicle itself. The kit includes a 2-5/16" diameter ball that fits 2-5/16" gooseneck couplers and is compatible with the truck bed puck system found on Chevy, Ford, GMC, Nissan, and Ram trucks equipped with the towing prep package (Chevrolet / GMC long-bed 2020-current only). Part #60669 is required for installing on select Chevrolet Silverado and GMC Sierra 6.5' short bed trucks. It also fits CURT OEM-style gooseneck hitches.

• Provides extra 4" of rearward offset for improved turning and clearance
• Frame protected by a highly durable carbide black powder coat finish
• Tested for safety in accordance with SAE J2638
• Limited lifetime warranty (one-year finish, one-year parts)
• Rated for up to 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load
• Multi-fit design fits select Chevrolet, Ford, GMC, Nissan and Ram puck systems
• Quarter-turn anchoring system provides quick installation and removal
• Anti-rotation arms provide stability and eliminate chucking between frame and pucks
• All-in-one solution with integrated safety chains holders
• Adjustable anchors eliminate chucking between frame and pucks
• Includes standard 2-5/16" diameter gooseneck ball with 4" rearward offset
• Forged and machined steel gooseneck ball with chrome-plated finish

Attributes:

• Brand Name: CURT
• GTIN: 00612314056293
• Ball Diameter: 2-5/16 IN
• Box Height in Inches - XA: 0
• Box Length in Inches - XA: 0
• Box Width in Inches - XA: 0
• Container Cases Qty - XA: 240
• Container Load Type - XA: PALLETS
• Container Pallet Qty - XA: 10
• Container Type - XA: 20GP
• Container Unit Qty - XA: 240
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 16650
• Finish - XA: Blank
• Gooseneck Hitch Type: OEM Puck Kit
• Gross Trailer Weight (GTW): 30,000 LB
• Item Class - XA: OBS
• Item Height - XA: 5.700
• Item Length - XA: 38.600
• Item Width - XA: 18.100
• Master Case Height Inches - XA: 5.700
• Master Case ITF14: 0
• Master Case ITF14 - XA: 612314056293
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 38.600
• Master Case Qty - XA: 1
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 54.400
• Master Case Width Inches - XA: 18.100
• Material - XA: CAST STEEL
• Mount Type Description - XA: Not Applicable
• Pallet Case Per - XA: 0
• Pallet Case Per Layer - XA: 0
• Pallet Cases Per - XA: 30
• Pallet Cases Per Layer - XA: 2
• Pallet Layer of Cases - XA: 12
• Pallet Qty - XA: 30.000
• Pallet Total Height Inches - XA: 74.500
• Pallet Total Weight Per - XA: 1665.000
• Parcel Allowed - XA: Yes
• Product Weight - XA: 53.400
• Rate Class - XA: 65.0
• Retail Height - XA: 39.000
• Retail Length - XA: 6.000
• Retail Width - XA: 18.000
• Sales Family Code - XA: GOOSE
• Sales Family Description - XA: GOOSENECK
• Sales Group Description - XA: GOOSENECK HITCH HITCH
• Shipping Weight - XA: 53.400
• Side Application Type Description - XA: Not Applicable
• Tariff 301 - XA: Yes
• Truckload Cases Qty - XA: 300
• Truckload Pallets Qty - XA: 10
• Truckload Units Qty - XA: 300
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 16650
• Vertical Load Capacity: 7,500 LB
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 6.0000 x 18.0000 x 39.0000 inches
• Weight: 53.4000 POUNDS
